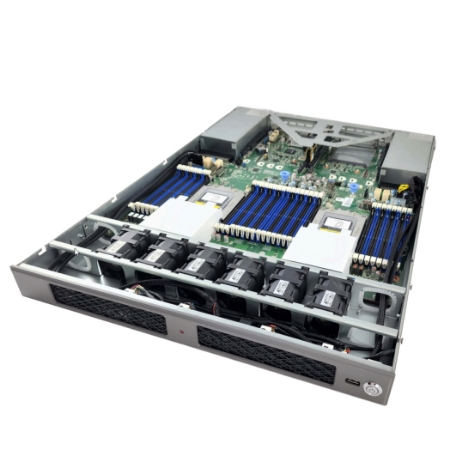

1U2E32TO-E7003

1U 2xM.2 PCIe 4.0 x4 Storage, 32xDIMM 8TB + 2x10GbE LAN + OCP NIC 3.0, 2xPCIe 4.0 x16 Slots, Dual 3rd Gen. EPYC™

Key Features:

• Dual AMD EPYC™ 7003/7002 Series Processors
• 1U 2 x M.2 PCIe 4.0 x4 Slots
• 32 x DDR4 up to 8TB 8-Channel 3200MHz ECC Memory
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• 2 x PCIe 4.0 x16 Slots (Full Height Half Length)
• 1200W Platinum Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud

Download DataSheet

SKU: 1U2E32TO-E7003
Product specifications
Processor
• Dual AMD EPYC™ 7003/7002 Series Processors
• Socket SP3 (LGA 4094) supports 280W, Up to 64 Core 128 Threads
Chipset

• AMD EPYC™ Platform (SOC)

Memory
• 32 x DDR4 DIMM Sockets
• 8-Channel Memory Bus per Processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM/LRDIMM
Storage
• 2 x M.2-22110/2280 PCIe 4.0 x4 Slots
• 4 x SATA-6Gb/s ports from Marvel 9235
• 2 x SFF-8654 ports for 4 x NVMe
Network
• 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X550-AT2
• 1 x OCP 3.0 (PCIe 4.0 x16) Slot for Ethernet Network Module
• 1 x Realtek® RTL8211E RJ45 Gigabit LAN Port for IPMI 2.0
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 2 x PCIe 4.0 x16 Slots (Full Height Half Length)
• 1 x OCP 3.0 (PCIe 4.0 x16) Slot for Ethernet Network Module
Graphics
• Aspeed AST2500 BMC VGA (DB15)
Back I/O
• 2 x USB 3.1 Ports
• 2 x RJ45 10GbE LAN Ports
• 1 x RJ45 IPMI 2.0 Port
• 1 x DB15 VGA Port
Internal I/O
• 2 x USB 3.1 Headers
• 2 x Serial COM Port Headers
• 1 x 15Pin Graphics Header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 1U Rackmount with Front HDD LED
• 6 x 4cm Cooling Fans
• Dimension: 1.75" H x 17.2" W x 24.9" D
• Optional:
• 2U Rackmount 3.43" H x 17.26" W x 25" D
Power Supply
• 1200W (1+1) Hot Swap Redundant Platinum Level PSU
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment

• Operating Temperature: +10C to +35C
• Non-operating temperature: -40C to +70C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 20% to 9% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance

*
*
*
