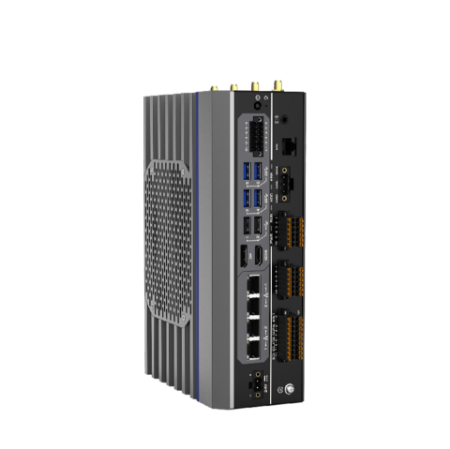

Picture of CAN-H610

Picture of CAN-H610

Picture of CAN-H610

Picture of CAN-H610

Picture of CAN-H610

CAN-H610 - Intel® Alder Lake-S Visual Computing

Intel® LGA1700 12~14 Gen. i9/i7/i5/i3 CPU, DP+ HDMI, 4 x LAN, 2 x CAN ,2 x RS232, 4 x RS485

Featured Highlights
	Intel® LGA1700 12~14 Gen. i9/i7/i5/i3 CPU
	H610
	Intel® CPU integrated Gen.12 Graphics Engines, DP+ HDMI® Dual Display
	2 x DDR5-SODIMM，Up to 128G
	2 x M.2 Key M Socket (2242/2280,NVME)
	4 x Intel® Gigabit LAN, 2 x CAN Buses
	4 x USB3.0 , 2 x USB2.0 , 2 x RS485/232, 4 x 485/422/232 ,Optical isolation 16 digit I/O（8-in，8-Out）
	Power Supply: 24V DC IN
	OS Support: Windows 11 ,ubuntu Linux
	Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.

SKU: CAN-H610

Specifications
Request for Info

Product specifications

Processor • Intel® LGA1700 12~14 Gen. i9/i7/i5/i3 CPU Chipset • H610
Graphics • Intel® CPU integrated Gen.12 Graphics Engines • 1 x HDMI 2.1，Up to 4096 ×2160 @60Hz • 1 x DP，Up to 3840 x 2160 @60Hz Memory • 2 x DDR5 4800MHz SO-DIMM, up to 64GB
Network • 4 x Intel GbE LAN ( 1xi219V, 2xi226V, 1xi210AT ) • 4 x RJ45 Expansion Slot • MB：1xM.2 Key B Socket (3042/3052) support 4G/5G • Daughter Board：1 x M.2 Key-E 2230，for Wifi/BT
Storage • 2 x M.2 Key M Socket (2242/2280,NVME) Audio • Realtek ALC897 • 1 x 3.5mm Audio Out jack 2-in1（Mic-in,Line-out)
I/O • 4 x LAN RJ45 Gigabit • MB: 2 x RS485/232（with CAN，integrated by 12Pin Phoenix connector） • Daughter Board：4 x RS232/485/422 Magnetic Isolation • 2 x CAN Buses（12Pin Phoenix /RJ50/3Pin connectors,choose 2 from 3） • 4 x USB3.0 ，2 x USB2.0 • Optical 16-bit I/O（8-in, 8-out） Function • TPM 2.0 • Watchdog • 1x TTL Debug
Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 230mm(L)×165mm(W)×71.5mm(H) • Supports Desk/Wall-mounting, Din rail mounting Power Supply • Power: DC 24V 2-pin Phoenix • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10/11 , Ubuntu22.04 (Jetpack6.2) Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® LGA1700 12~14 Gen. i9/i7/i5/i3 CPU Chipset • H610
Graphics • Intel® CPU integrated Gen.12 Graphics Engines • 1 x HDMI 2.1，Up to 4096 ×2160 @60Hz • 1 x DP，Up to 3840 x 2160 @60Hz Memory • 2 x DDR5 4800MHz SO-DIMM, up to 64GB
Network • 4 x Intel GbE LAN ( 1xi219V, 2xi226V, 1xi210AT ) • 4 x RJ45 Expansion Slot • MB：1xM.2 Key B Socket (3042/3052) support 4G/5G • Daughter Board：1 x M.2 Key-E 2230，for Wifi/BT
Storage • 2 x M.2 Key M Socket (2242/2280,NVME) Audio • Realtek ALC897 • 1 x 3.5mm Audio Out jack 2-in1（Mic-in,Line-out)
I/O • 4 x LAN RJ45 Gigabit • MB: 2 x RS485/232（with CAN，integrated by 12Pin Phoenix connector） • Daughter Board：4 x RS232/485/422 Magnetic Isolation • 2 x CAN Buses（12Pin Phoenix /RJ50/3Pin connectors,choose 2 from 3） • 4 x USB3.0 ，2 x USB2.0 • Optical 16-bit I/O（8-in, 8-out） Function • TPM 2.0 • Watchdog • 1x TTL Debug
Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 230mm(L)×165mm(W)×71.5mm(H) • Supports Desk/Wall-mounting, Din rail mounting Power Supply • Power: DC 24V 2-pin Phoenix • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10/11 , Ubuntu22.04 (Jetpack6.2) Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
