 Think Big. Go Small. Eco-Smart Computing

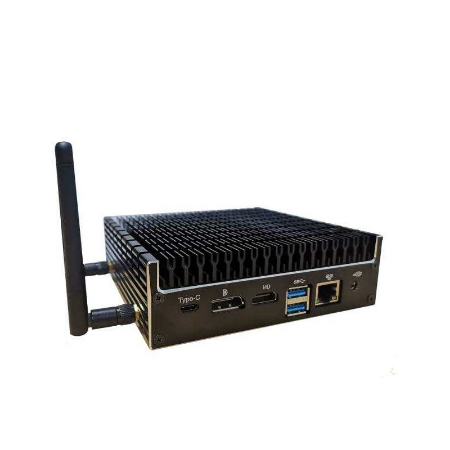

Nano-U10F - Comet Lake Fanless Mini PC

10th Gen. Comet Lake-u, UHD620 4K GPU 2 Display, SATA+M.2 NVMe SSD, 6 USB + Type-C USB
Featured Highlights
  Intel® Core™ i7/i5/i3/Celeron®/Pentium®-u Processor
  Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
  Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI+DP
  2 DDR4 SO-DIMM for up to 64GB Memory
  SATA-6Gb/s, M.2 SSD/NVMe
  Gigabit LAN, M.2-WiFi
  2 USB 3.0, 2 USB 2.0, Type-C
  Eshine® CJC6811 Audio Codec
  DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
      Optional DC12V 2.5mm AC Adapter
  OS Support: Windows 10/11, IoT, Linux
  Applications: Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, etc.

In Stock

SKU: Nano-U10F

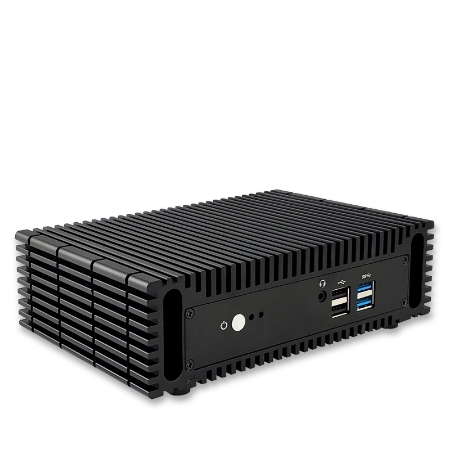

Nano-U10F

Features 10th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u processors (all formerly known as Comet Lake / Whiskey Lake). This is perfect Fanless PC for Digital Signage Player PC, POS/Kiosk, AI Edge, IoT, Set Top Box and Mini PC etc. This Fanless tiny sized computer has impressive graphics with Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI+DP, and up to 64GB of dual-channel DDR4 memory. Is Prefect for Fanless Digital Signage Player PC.

Product specifications
Processor

• Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W
• Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 10/15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 12.5/15W
• Intel® Celeron® 4205u 1.80GHz 2Core 2Threads 2M 12.5/15W
• Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-5405u 2.3GHz 2Core 4Threads 2M 15W

Chipset
• Intel® Comet Lake-u Platform (SOC)
• Option: Intel® Whiskey Lake Platform (SOC)
Graphics

• Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Eshine® CJC6811 Audio Codec
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 1 x HDMI port
• 1 x DP
• 1 x LAN port
• 1 x Type-C port
• 1 x DC-In Power Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 1 x 3.5mm Audio jack (Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
• Watchdog supported
Chassis

Nano-F6 Chassis Enclosure
• Dimensions: 5.43"(D) x 4.96"(W) x 1.54"(H) (Depth dimension changeable), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets
• Option: Nano-F5 5.43"(W) x 4.96"(D) x 1.65"(H), Nano-F7S 8.27"(W) x 6.30"(D) x 1.38"(H), Nano-F8 5.43"(W) x 4.96"(D) x 1.65"(H), NUC-8 4.92"(W) x 4.92"(D) x 1.50"(H) with Fan, Nano-12C 5.44"(W) x 4.97"(D) x 1.46"(H)

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 10/11, IoT, Linux

Application

• Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, etc.

Environment
• Operating Temperature: 0 to +40 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
