Think Big. Go Small. Eco-Smart Computing

H110L4C6 - Industrial Multipurpose Fanless Edge for AI PC

9th - 6th Gen Fanless Socket-S, HDMI+DVI+VGA+LVDS, PCIe x16+PCIe x4+MiniPCIe, 4 LAN+6 COM+9 USB
Featured Highlights
  Intel® 9th/8th/7th/6th Gen. Core™ i9/i7/i5/i3 Embedded T-Series Socket-S Processor
  Intel® H110/C236 Chipset
  Intel® Graphics, HDMI+DVI+VGA+LVDS
  2 DDR4 SO-DIMM for up to 32GB Memory
  2 SATA-6Gb/s, mSATA, M.2 SSD/NVMe
  PCIe x16, PCIe x1/x4, MiniPCIe
  4 Gigabit LAN, M.2 4G/5G+SIM
  4 USB 3.0, 5 USB 2.0, 6-10 COM
  HD Audio Sound
  Power Supply: DC10V-30V Wide Power Range (UL/CE/FCC Certified)
  OS Support: Windows 10/7, WES7, Linux (64bit/32bit)
  Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge Computing, Industrial Rugged PC etc.


SKU: H110L4C6

H110L4C6

is compatible with 9th-6th generation 35W LGA1151 Intel® Core™ i9/i7/i5/i3 processors. This ruggeed industrial grade fanless system is engineered to be versitle and flexible to perform any task required of it. The base system can be optionally customized to make use of PCI Express expansion slots and additional COM ports. This Mini PC is perfect for Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, Industrial Rugged PC, and many more. The H110L4C6 offers up to 4 different display outputs with HDMI, DVI, VGA, and LVDS along with 6 COM with 2 isolated RS485 and the option to expand to 10 COM ports.

Product specifications
Processor

• Intel® 9th/8th/7th/6th Generation LGA1151 Core™ i9/i7/i5/i3 Embedded T-Series 35W

Chipset

• Intel® H110/C236 Chipset

Graphics

• Intel® Graphics (based on CPU)
• Support 2 Displays with H110 chipset and 3 Displays with C236 chipset
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2
• 1 x DVI-D port
• 1 x VGA port
• 1 x LVDS/eDP header

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB

Network

• 3 x Intel® I211AT Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• Gigabit Ethernet port surge protection (common mode 4KV, differential mode 8KV)
• M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• 1 x SIM socket for 5G/4G-LTE option
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x PCI Express x16 slot
• 1 x PCI Express x1 (x4 in C236 chipset) slot
• 1 x MiniPCIe full size slot
• 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe with C236 chipset)

Storage

• 2 x SATA 6Gb/s (C236 chipset supports RAID0/1)
• 1 x mSATA
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe with C236 chipset)

Audio

• HD Audio
• 3 x 3.5mm Analog Stereo Audio jacks

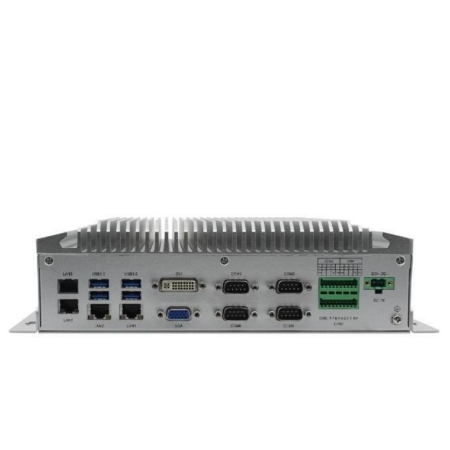

Back Panel I/O

• 4 x USB 3.0 ports
• 4 x LAN ports
• 4 x RS232 COM ports
• 2 x RS485/422/232 COM ports
• Optional Additional 4 x RS485/232 COM ports
• 1 x DVI-D port
• 1 x VGA port
• 1 x DC-In Phoenix Terminal

Internal I/O

• 1 x USB 2.0 Internal port
• 1 x LVDS/eDP header

Other I/O

• 4 x USB 2.0 ports (Front)
• 3 x Audio jacks (Front)
• 1 x HDMI port (Front)
• 1 x PS2 port (Front)
• 1 x SIM slot (Front)

Function

• TPM support
• 1 x 4pin SM Bus Interface

System BIOS

• AMI® UEFI BIOS
• Watchdog supported

Chassis

• Fanless Industial Chassis
• Dimensions: 10.12"(W) x 7.52"(D) x 3.11"-7.44"(H),  Weight: 6.6 lb. (Net) 8 lb. (gross with packaging)
• Supports wall mount brackets

Power Supply

• Power: DC10V-30V Phoenix Terminal power adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, Windows 7, WES7, Linux (64bit/32bit)

Application

• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge Computing, Industrial Rugged PC etc.

Environment

• Operating Temperature: -10 to +55 C
• Non operating temperature: -40 to +80 C
• Vibration - Operating: (3.0G) 5 to 500Hz
• Vibration - Non operating: (3.0G) 5 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 20% to 90% (non-condensing)
• Non-operating Relative Humidity: 20% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
